Setting the standard for value-class thermal receipt printers, SNBC delivers an affordable POS printer that provides all popular connection interfaces, including USB, Serial and Ethernet, with state-of-the-art speed and best-in-class reliability.

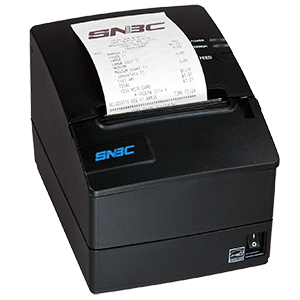

BTP-R180II
Manufacturer: SNBC
Model Number: BTP-R180II
Type: 80 mm
Model Number: BTP-R180II
Type: 80 mm
Features
Triple Interface Standard – USB+Serial+Ethernet
Fast 230mm/Second Print Speed
Simple Drop-In Paper Loading
Standard Auto Paper Cutter
Includes Cables and Power Supply
Compatible with Popular POS Software Applications
SDK Available for Windows, Android and iOS
Supports Windows, Linux, JavaPOS and OPOS Operating Systems
Part Number(s):
132085 USB+Serial+Ethernet
Accessories
130250 Cable Eliminator – Install POS, Kitchen, Bar & Requisition Printers in Minutes 132120 Printer Messenger – For noisy kitchens and unattended applications… alrm sounds and light flashes when a new order is printerd.
Detailed Specifications
Max. Print Speed – Mono: 230mm per Second
Grayscale: 150mm per Second
Two-Color: 120mm per Second
Printing Method: Direct Thermal
Resolution: 180 DPI x 180 DPI
Characters Per Line – Font A: 42 (72mm) / 33 (58mm)
Font B: 56 (72mm) / 45 (58mm)
Characters Size – Font A: 12 x 24
Font B: 9 x 17
Paper Roll Type – Width: 82 / 80 / 76 / 69 / 57mm ± 0.5mm
Maximum Diameter: 83mm
Paper Thickness: 0.06mm ~ 0.08mm
Auto Paper Cutting Method: Auto-Cutter with Selectable Full or Partial Cut
Reliability – MTBF: 360,000 Hours
MCBF: 60,000,000 Lines
Printhead Life: 150 Km
Cutter Life: 1,500,000 Cuts
Character Set – Alphanumeric: 95
International: 13
Code Pages: 56
Bar Code – 1D: UPC-A / UPC-E / EAN8 / EAN13 / Code39 /
Code93 / CODE128 / CODABAR / ITF
2D: PDF417 / QR Code / Maxicode / GS1
Interpreter: ESC/POSTM
Interface: Serial + USB + Ethernet
Drivers – 32-bit: Windows XP Professional / XP Home Edition /
2000 Server / 2000 Prof. / POSReady 2009
64-bit: Windows XP
32 and 64-bit: Windows 10 / 8.1 / 8 / 7 / Server 2012 /
Server 2008 / Server 2003 / Vista
Other: Linux / OPOS / BYJavaPOS Windows /
BYJavaPOS Linux
Software Development Kit: iOS / Android
Drawer Port: Up to 2 Drawers (+24VDC)/Drawer Compulsion
Data Buffer – Receive Buffer RAM: 64 KB
RAM Bitmap: 128 KB
Flash Bitmap: 512 KB
Power Supply: AC 100 ~ 240 V, 50/60 Hz Adapter Included
Current/Power Usage: 1.5A / 36W
Operating Temperature: 40° ~ 114°F (5° ~ 45°C)
Operating Humidity: 20% ~ 90% RH (Non-Condensing)
Dimensions: 5-3/4″W x 5-9/16″H x 7-11/16″D
Shipping Weight: 7 lbs. (Unit) / 30.10 lbs. (Master Carton of 4)
Safety and EMI: FCC / RoHS
