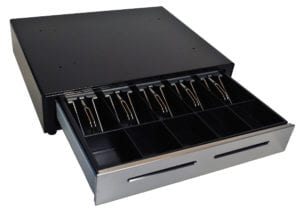

EP-125NK Cash Drawer

The EP-125NK electronic cash drawer is the industry standard for under-counter mounting. It has 4 small holes in the top for mounting, but can also be used above the counter.

Features

  • Industry standard for under the counter mounting
  • Thick Steel Construction with stainless steel front
  • Black, off-white or brown powder coated finish
  • Manual release key-lock at right front
  • Standard ABS plastic 5 coin/5 bill removable money tray insert for US.
  • Standard ABS plastic 7 coin/4 bill removable money tray insert for Canada.
  • Stainless steel money clip
  • Bottom exit detachable cable with strong DB9 connection
  • Compulsory Switch

Part Number(s):

  • EP-125NK-M-B : 18.8″(W)x15.2″x4.50″C/D;black;media;requires CD9-type cable;printer interface;5B5C US insert standard
  • EP-125NK-M-B-C : 18.8″(W)x15.2″x4.50″C/D;black;media;requires CD9-type cable;printer interface;7B4C Canada insert standard
  • EP-125NK-USB-M-B : 18.8″(W)x15.2″(L)x4.59″USB C/D; black; 5B5C insert; SS front;USB-CABLE-V2-B cable incl; media
  • EP-125NKSI-M-B-9 : 18.8″(W)x15.2″(L)x4.59″Intelligent RS232 C/D;black;5B5C insesrt;SS front;DB9 dedicated cable & AC

Accessories

  • 73041-003-STD : Standard US Money Tray Insert; 5-bill/5-coin; fits EP-125NK, EP-125NKL, EP-127NK, EP-125NK2, HP-122N, EP-127SA, EP-127-SA-23
  • 73041-003-CDN : Standard Canada Money Tray Insert; 4-bill/7-coin for Canada; fits EP-125NK, EP-125NKL, EP-127NK, EP-125NK2, HP-122N
  • 73041-003-8C6B : Optional Money Tray Insert; 6-Bill (inclined) + 8-Coin; fits EP-125NK,EP-125NKL,EP-127NK,EP-125NK2, HP-122N
  • 73041-003-ADJ : Optional Money Tray Insert; 5-bill/5-coin adjustable; fits EP-125NK, EP-125NKL,EP-127NK,EP-125NK2, HP-122N
  • 73041-003-TWO : Optional Money Tray Insert; 5-bill/6-coin, 2-part insert (not nesting); fits EP-125NK, EP-125NKL,
  • 73041-021A : Standard LOCKING Lid for the 73041-003-STD and 73041-003-ADJ money tray inserts
  • 73041-021N : Randomly keyed Locking Lid for the 73041-003-STD Money Tray Insert
  • 1070-S : Under-Counter mounting brackets for EP-125K, K2, NK, NK2, AND HP-122 Cash Drawers
  • 1070-D : Under-counter double brackets for the EP125NK series & HP-122N; must be used along with the 1070-S

Detailed Specifications

Dimensions 18.8″ W X 15.2″ L X 4.58″ H
*4.11″(H) without rubber feet
Warranty 2 years
Ship Weight Approx. 26 lbs.
Drawer Release Solenoid 12v or 24v
Available: Wired for any receipt printer, ERC/POS system, or computer interface
