The powerful and flexible FORZA POS system serves as the framework for a full-service POS solution. A variety of choices provide options for optimum performance and reliability to best fit your needs in harsh retail and food service environments.

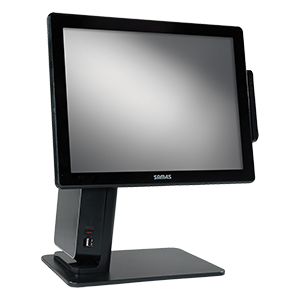

FORZA 1510
Manufacturer: Sam4s
Model Number: FORZA 1510
Type: 15"
Model Number: FORZA 1510
Type: 15"
Features
4th Generation Celeron J1900 Processor Solid State Drive Improves Performance and Reliability
Projected Capacitive Touch (PCT)
15″ Screen / 4:3 Aspect Ratio
Vivid LED Backlight
Variety of Available Integrated Customer Displays
Designed For Superior Serviceability and Easy Installation
Part Number(s):
732000 1510 / J1900 POSReady 7 †
732002 1510 / J1900 Windows 10 IoT Ent. 2016 Entry †
732001 1510 / J1900 Windows 7 Pro †
732003 1510 / J1900 Windows 10 Pro †
732005 1510 / J1900 No OS / With SSD
732004 1510 / J1900 No OS / No Disk Drive * Standard † Specify 32BIT or 64BIT
Accessories
503330 * MCR Track 1, 2 & 3
503323 MCR Connector Cover (If MCR is Not Installed)
503073 WiFi Module
Choose One:
503331 USB x 4 Port Board
503332 Serial x 2 Port Board (DB9M / RJ45)
503333 Parallel x 1 Port Board
732100 LCD 2 Lines x 20 Characters
732101 9.7″ Non-Touch Rear LCD
732102 9.7″ Touch Rear LCD
732105 15″ Non-Touch Rear LCD
732106 15″ Touch Rear LCD
* Standard (Replacement Part)
Detailed Specifications
Processor: Intel Celeron J1900
Cores / Threads: Quad Core / 4 Threads
Cache Memory: 2MB
Display LCD: 15″ LCD with LED Backlighting
Resolution: 1024 x 768 / Aspect Ratio 4:3
Brightness: Adjustable Up to 350 cd/m2
Integrated Speakers: Integrated 2W Speaker
Chipset (PCH): System on Chip
Touch: Projected Capacitive Multi-Touch Panel (PCT)
MCR: Integrated USB Interface Triple Track MCR
Mass Storage Device: 128GB 2.5″ Solid State Drive
RAID Support: No
RAM Memory 4GB DDR3 (1 Slot)
Expandable To 8GB
Video Memory: Shared System Memory
Serial Ports: COM1 / COM2 / COM3 = DB9M With Pin 9 (0V/+5V/+12V)
COM4 = RJ45 Pin 1 (0V+5V/+12V)
Voltage Selectable By BIOS
USB Ports: Six Total V2.0
Cash Drawer Port: RJ12, 12V or 24V Selectable By BIOS –
Maximum 2 Drawers – Supports Drawer Compulsion
LAN Port: RJ45 10/100/1000 Base-T (Giga LAN) RealTek RTL8111G
Video Port: One Display Port for Second LCD
(Maximum Resolution 4096 x 2304 @ 60Hz)
HDMI Port: Not Applicable
Audio Port: One Line-Out
Mic Port: Not Applicable
