Elo’s I-Series delivers reliable, enterprise-grade security and performance powered by Intel 12th gen processors including Celeron, Core i3, i5 and i7. Designed with a sleek and durable fixed tablet form factor, the I-Series offer models that support Windows, ChromeOS Flex and Linux (SuSE, Ubuntu and Red Hat). Available in sizes ranging from 15″ to 24″ with square and wide aspect ratios, with and without stands, the I-Series offers a modular platform with versatility to fit almost any application – from point-of-sale and interactive signage to self-service and automation controls.

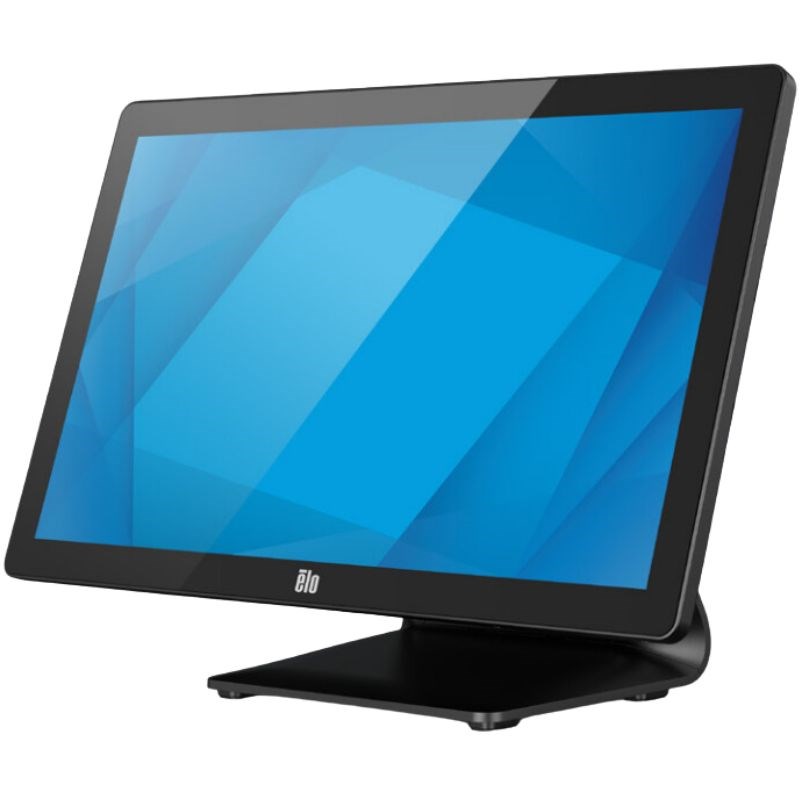

I-Series 3 with Intel®
Manufacturer: Elo Touch Solutions
Model Number: E705627
Type: 15"
Model Number: E705627
Type: 15"
Features
- Wide format AiO commercial-grade touchscreen
- Intel 12th Gen Processors
- IPS PCAP Touchscreen
- Fanless
- IP54 Rated Design
- Stand
Part Number(s):
E705627
Accessories
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
Customer Display (2×20 VFD) – Elo P/N: E001003
2D Barcode Scanner (Black – SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black – SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo – Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
Status Light (Micro-USB Connectivity) – Elo P/N: E644767
3D Camera – Elo P/N: E134699
Webcam – Elo P/N: E201494
RFID – Elo P/N: E673037
Elo Edge Connect™ Speaker Bar (Black) – Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) – Elo P/N: E133780
Tabletop Stand for 15″” Display – Elo P/N: E466998
Power Brick Kit, 24V 180W – Elo P/N: E845269
1002L – Elo P/N: E155834
1002L – Elo P/N: E324341
1302L – Elo P/N: E683595
Elo 2ft authorized USB-C cable – Elo P/N: E969524
Elo 6ft authorized USB-C cable – Elo P/N: E710364
Detailed Specifications
Enclosure Color – Black
Touch Technology & Capacity – PCAP (TouchPro® Projected Capacitive) – 10 Touch
Processor – i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
Graphics – Intel UHD Graphics
BIOS – AMI
Memory (RAM) – Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots) NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.
Storage – 128GB M.2 PCIe (NVMe) SSD 80 TBW
TPM – 2.0
Diagonal Size – 15.6” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio – 16:9
Active Area – 13.55″” x 7.62″” / 344.2 mm x 193.5 mm
Resolution – 1920 x 1080 @ 60Hz
Number of Colors – 16.2 million
Brightness (typical) – LCD panel: 350 nits; TouchPro PCAP: 297.5 nits
Response Time-total (typical) – 25 msec
Contrast Ratio – 1000:1
Viewing Angle – Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports – 1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x 24V Powered USB Port
2x 12V Powered USB Ports
1x RJ50 Powered Serial Port
1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)
Wireless – 802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth – Bluetooth 5.2
Speakers – 2 x 2W internal speakers
OS – No OS
Languages – Windows 10 – 36 Language groups
Power Supply – External 24VDC universal-type power supply brick; AC input voltage: 100-240 VAC; Input frequency: 50-60 Hz; Maximum output power: 180W
Power Consumption (Typical) – i3: 43W
Dimensions – With stand: 15.12″” x 13.32″” x 7.78″” / 384.1 mm x 338.4 mm x 197.5 mm
Shipping Box Dimensions – With stand: 19.6″” x 19.2″” x 13.6″” / 497 mm x 487 mm x 345 mm
Weight (Unpackaged) – With stand: 14.08 lbs / 6.4 kg
Weight (Packaged) – With stand: 19.58 lbs / 8.9 kg
Operating Temperature – 0°C to 35°C / 32°F to 95°F; Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.
Storage Temperature – -20°C to 60°C / -4°F to 140°F
Humidity – Operating: 20% to 80%; Storage: 5% to 95% (38.7°C max wet bulb temperature)
Energy Star – Energy Star 8.0 certified configurations available
Real-Time Clock – CR2450 lithium metal battery
MTBF – 50,000 hours demonstrated
Mounting Options – 75mm VESA mount
Warranty – 3-year
Sealability – Touchscreen sealed to sub-bezel; Touchscreen sealed to LCD
Power Cables – North American and European power cables included
Other Features – Serviceable internal components; Kensington lock
What’s in the Box:
I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
CFD mounting screw
