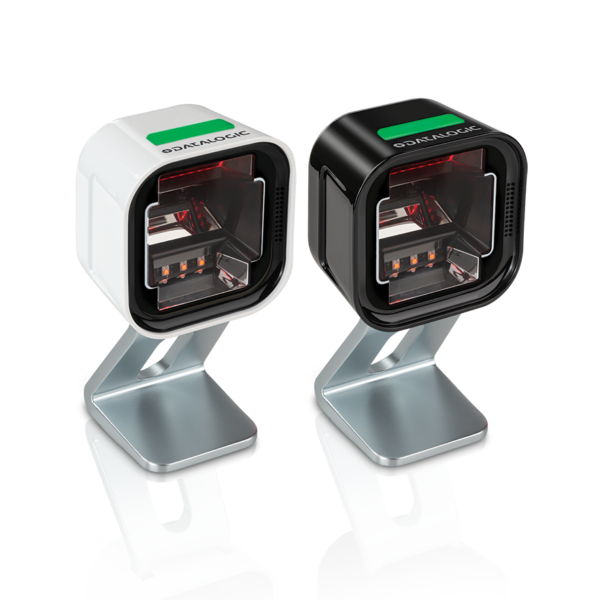

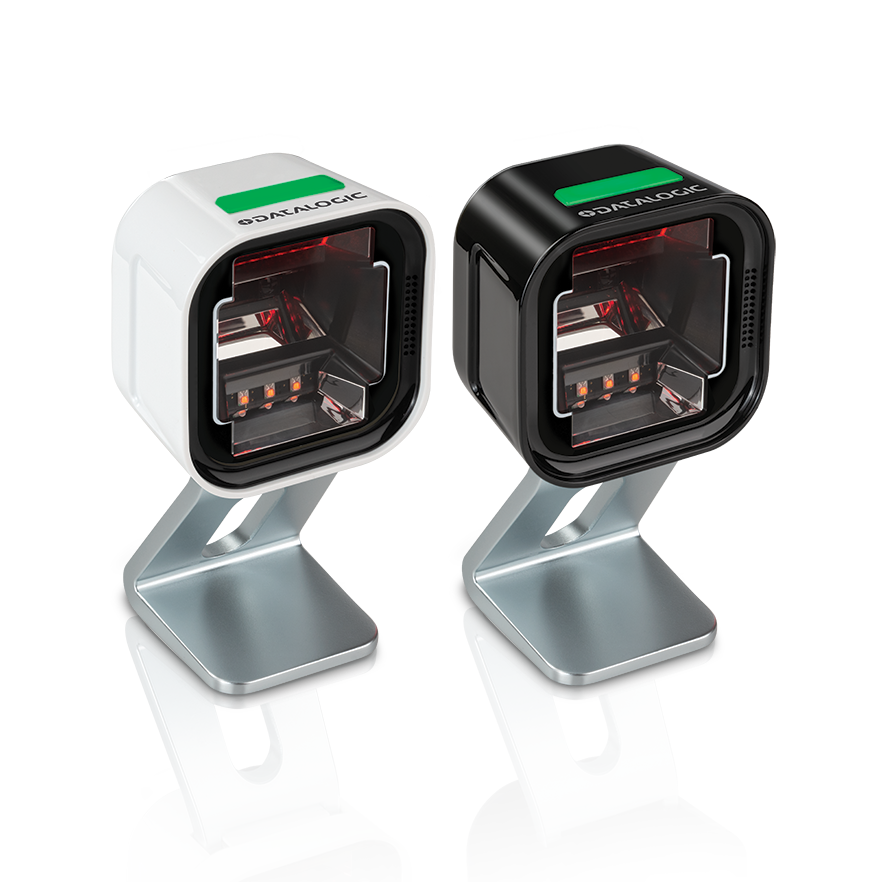

Magellan 1500i

The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service. The Magellan 1500i scanner provides outstanding performance on 1D and 2D bar codes from a variety of printed and mobile sources. The addition of Digimarc® Barcodes watermark decoding makes this a uniquely capable scanner in the presentation category.

Features

  • Advanced digital imaging provides class-leading performance and reliability
  • Seamlessly reads 1D and 2D bar codes, whether printed or displayed on mobile phone, laptop or tablets
  • Optional Digimarc® Barcode decoding
  • Subtle, adaptive illumination for user comfort
  • Compact, ergonomic design is ideal for hands-free or hand held operations
  • LED aimer for precision scanning of Price Look Up (PLU) lists or small items
  • Datalogic’s ‘Green Spot’ technology for good-read feedback
  • Image capture
  • Adjustable stand
  • Available interfaces: RS-232 or USB, OEM
  • Checkpoint® Systems EAS and Interlock Compatible
  • Easily monitored and updated via Remote Management, Scanalyzer™ or programming guides
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Part Number(s):

  • Magellan 1500i, Black, Std Configuration, 2D, Riser Stand with Magnetic Base, USB A Cable: MG1501-10231-0200
  • Magellan 1500i, Black, Std Configuration, 2D, Tilting Stand with Magnetic Base, USB A Cable: MG1501-10211-0200

Accessories

  • Cable, USB, Power Off Terminal, Coiled, 2.44 m: 8-0754-15
  • Cable, USB, Type A, Power Off Terminal, 2 m: 8-0754-12

Detailed Specifications

DECODING CAPABILITY

  • 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
  • 2D Codes: Aztec Code, Data Matrix, MaxiCode, QR Code
  • Postal Codes: Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post
  • Stacked Codes: GS1 DataBar Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1; DataBar Stacked Omnidirectional; Micro PDF417, PDF417
  • Digital Watermarks: Optional support for Digimarc® Barcodes/GS1 DW Code

ELECTRICAL

  • Current Operating (Typical): < 500 mA; Standby/Idle (Typical): < 300 mA
  • Input Voltage: 5 VDC +/- 10%

ENVIRONMENTAL

  • Ambient Light: 0 to 86,100 lux
  • Drop Resistance: Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
  • ESD Protection (air discharge): 25 kV
  • Humidity (Non-Condensing): 5 – 95%
  • Particulate and Water Sealing: IP52
  • Temperature: Operating: 0 to 40 °C / 32 to 104 °F; Storage/Transport: -40 to 70 °C / -40 to 158 °

INTERFACES

  • Interfaces: USB Keyboard; USB COM; OEM (IBM) USB; RS-232

PHYSICAL CHARACTERISTICS

  • Colors Available: Black; White
  • Dimensions: Tilting Riser: 6.0 x 7.5 x 13.8 cm / 2.4 x 3.0 x 5.4 in; Fixed Riser: 6.0 x 7.5 x 10.6 cm / 2.4 x 3.0 x 4.2 in; Wall Mount: 6.0 x 7.5 x 8.4 cm / 2.4 x 3.0 x 3.3 in
  • Weight: Tilting Stand: 240 g / 8.5 oz; Fixed Riser: 164 g / 5.8 oz; Wall Mount: 170 g / 6 oz

READING PERFORMANCE

  • Aiming: LED aimer for precision scanning
  • Image Capture: 1 MP; 1280 x 800 pixels; Graphic Formats: JPEG, BMP
  • Print Contrast Ratio (Minimum): 25%
  • Reading Angle: Pitch: +/- 65°; Roll (Tilt): 0 – 360°; Skew (Yaw): +/- 75°
  • Reading Indicators: Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
  • Resolution (Maximum): 0.130 mm / 5 mils

READING RANGES

  • Typical Depth of Field: Printing resolution, symbol length, scan angle, contrast and ambient light dependent.
    1D / Linear Codes: 5 mils:
    2.5 to 9.0 cm / 0.9 to 3.5 in;
    7.5 mils: 0 to 17.0 cm / 0 to 6.6 in; 10 mils: 0 to 21 cm / 0 to 8.2 in;
    13 mils UPC: 0 to 25.0 cm / 0 to 9.8 in;
    20 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in;
    Optional Codes:
    6.5 mils PDF: 2.5 to 11.0 cm / 0.9 to 4.3 in;
    13 mils Data Matrix: 0 to 17.0 cm / 0 to 6.7 in;
    16 mils PDF: 0 to 2.0 cm / 0 to 7.8 in;
    24 mils Data Matrix: 0 to 25.0 cm / 0 to 9.8 in

SAFETY & REGULATORY

  • Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance: Complies to China RoHS; Complies to EU RoHS
  • LED Classification: EN62471 and IEC62471 Lamp Illumination

UTILITIES

  • Scanner Configuration: Scanalyzer can be used for scanner configuration. Available for download at no charge.
  • OPOS / JavaPOS: JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge.
  • Remote Host Download: Lowers service costs and improves operations.

WARRANTY

  • Warranty: 3-Year Factory Warranty
