Model 5 & 6

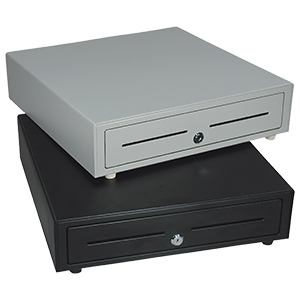

The CRS Models 5 and 6 Manual Cash Drawers can be placed anywhere – just push on the drawer front to open or close.


Large Flexible Storage Area Under the Insert’s Coin Section
Steel Rails with Heavy Duty Nylon Rollers
Completely Adjustable Bill Weights and Coin Dividers to Customize the Insert to Your Personal Preference
Two Media Slots
Extra Storage is Available for Coin Rolls in the Removable Coin Tray
Spring Activated Bill Weights
Durable Ivory or Black Powder Coat Finish
Heavy Duty Latch
Heavy Duty Nylon Rollers

Part Number(s):

160005 Model 5 Ivory
160006 Model 6 Black


Under counter mount bracket

Detailed Specifications

Cabinet Color: Ivory or Black Powder Coat Finish
Bill / Coin Compartments: 5 Bill / Up to 9 Coin with Adjustable Bill Weights and Bill and Coin Dividers
2-Position / 3-Function Drawer Lock: Push Release, Lock-Close, Lock-Open
Media Slots: Two – 4” Long
Drawer Compulsion: Not Applicable
Cable / Connector: Not Applicable
Printer Interface Pin-Out Assign.: Not Applicable
Solenoid Voltage: Not Applicable
Dimensions – Drawer: 16-1/8”W x 3-15/16”H x 16-3/8”D
Insert: 14”W x 2-1/2”H x 12-5/8”D
Shipping Carton: 18-1/4”W x 5-1/2”H x 18-1/4”D
Shipping Weight: 17.10 lbs.
