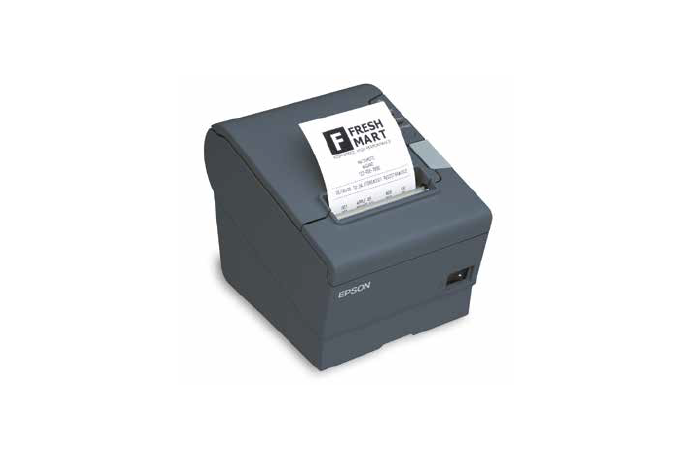

OmniLink TM-T88V-i Intelligent Printer with VGA or COM

Epson’s OmniLink TM-T88V-i combines our best-selling TM-T88V POS receipt printer with a retail-hardened PC and built-in web server to enable mobile POS deployments, cloud-based services and web-based POS. In addition, it provides the application power and flexibility to run a broad range of Point-of-Sale (POS) configurations.

Features

  • Printer with retail-hardened PC
  • Ethernet, optional Wireless-N connectivity
  • Supports web-based printing from virtually any mobile device
  • Add cloud services without need for legacy POS integration
  • 4 USB ports for peripherals and video output
  • Print speeds up to 300mm/sec
  • Paper-saving features reduce paper usage up to 30%

Part Number(s):

  • C31CA85791 – TM-T88V-I-791:INT I/F(SRL);PS&USCBL;EBCK
  • C31CA85779 – TM-T88V-I-779:INT I/F(VGA);PS&US CBL;EDG
  • C31CA85A5961 – TM-T88V-I-324:CLOUD UB-U01C;PS∾EDG
  • C31CA85790 – TM-T88V-I-790:INT I/F(VGA);PS&US CBL;ECW

Accessories

  • A61B133A8990 – DM-D805 Pole Display Kit
  • B113101 – DM-D500 Customer Display
  • B133101 – DM-D110 Customer Display
  • B134101 – DM-D210 Customer Display

Detailed Specifications

Print Other

Printing Technology:
Thermal line printing
Print Speed:
Max. 11.8″/sec (300mm) graphics and text
2.4″/sec for ladder and 2D barcodes

General

Server Systems:
HTTP server (Apache)
Dimensions:
5.71″ x 7.68″ x 5.83″ (145 x 195 x 148 mm) (W x D x H)
Weight:
3.5 lb (1.6 kg)
Safety Approvals:
EMI standards: FCC/ICES-003 Class A
Safety standards: UL1950/CSA C22.2 No. 950
Case Color:
Epson Dark Gray (EDG), Epson Cool White (ECW)

Print Fonts

Print Fonts:
Font A (default): 12 x 24
Font B: 9 x 17 (including 2-dot horizontal spacing)
Column Capacity:
80mm: 42/56 columns
58mm model: 30/40 columns
Character Size:
Font A: 1.41 x 3.39
Font B: 0.99 x 2.40 (W x H mm)
Fonts:
Font A (default): 12 x 24
Font B: 9 x 17 (including 2-dot horizontal spacing)
Character Set:
95 Alphanumeric, 18 International, 128 x 43 Graphic (including user-defined page), Traditional/Simple Chinese, Thai, Japanese, Korean
Barcode:
UPC-A/E, CODE 39/93/128, EAN8/13, ITF, CODABAR 2D symbols: PDF417, QR-CODE, MaxiCode, Composite Symbology, GS1-128, GS1 DataBar Omnidirectional/Truncated/Limited/Expanded

Media Handling

Thickness:
55 – 80 µm
Media Dimensions:
80mm: 3.13″ ± 0.02″ x 3.27″ diameter (79.5 ± 0.5 (W) x 83mm)
58mm: 2.26″ ± 0.02″ x 3.27″ diameter (57.5 ± 0.5 (W) x 83mm)

Connectivity

Standard Connectivity:
Ethernet interface (100 Base-TX / 10 Base-T)
USB 2.0 Type A (4x)
USB 2.0 Micro-AB
VGA x 1 (D-sub 15pin female)

Control Board

Software:
Intelligent software: WebPOS Configuration, ePOS-Device®

Hardened PC

Processor:
ARM9 Processor (400MHz)
Interface:
USB 2.0 x 4
100 Base-TX / 10 Base-T Ethernet-compliant interface
VGA x 1 (D-sub 15pin female)
System Memory:
256MB
Operating System:
Embedded Linux

POS Details

Reliability:
MTBF: 360,000 hours
MCBF: 70,000,000 lines
Autocutter: 2 million cuts
Data Buffer:
Receive: 45 bytes or 4KB, selectable
user-defined: 12KB
macro: 2KB
NV graphics: 256KB
NV user: 1KB
page mode area: 106K
D.K.D.:
2 drivers
Software Drivers:
Drivers and setup utility are available on CD
Software Included:
Drivers and setup utility are available on CD or atpos.epson.com
Options:
Autocutter, Near-end sensor

Power

Power Consumption:
Operating: approx. 1.8 A (mean)
Power Source:
24 VDC ± 7%
