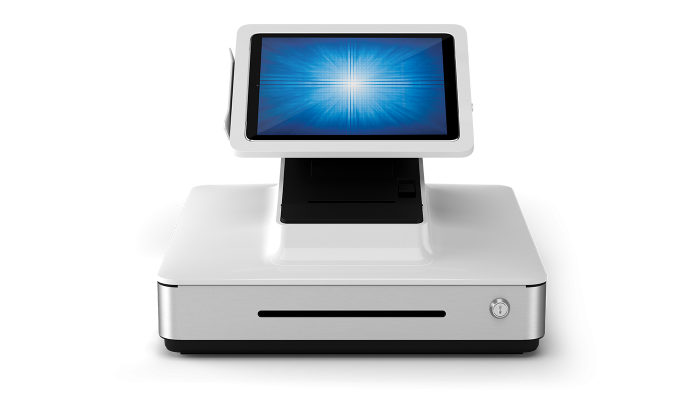

PayPoint Plus for iPad is a new all-in-one mPOS solution that brings unmatched style to the point of sale with a distinctive modern aesthetic. PayPoint Plus provides everything a merchant needs including a fully integrated 2D barcode scanner from Honeywell, a 3-inch printer from Star Micronics, an encryptable MSR from Magtek, full-sized 16-inch cash drawer and connections for third party peripherals. With a flip-for-signature and a built-in customer facing display to encourage shopper engagement, this space-saving and commercial-grade AiO is ideal for retail, hospitality, restaurants and entertainment venues.
Paypoint Plus for iPad
Manufacturer: Elo Touch Solutions
Model Number: Paypoint Plus for iPad
Type: 10”
Model Number: Paypoint Plus for iPad
Type: 10”
Part Number(s):
- White for 9.7″ iPads (North America/China) – E475092
- White for 9.7″ iPads (Worldwide) – E475289
Detailed Specifications
Enclosure Color
White
iPad Compatibility
For ETT10i2 models:
iPad Pro 9.7″
iPad (2017 model)
iPad 4
iPad Air
iPad Air 2
NOTE: Supports Lightning based iPads only
USB Ports
1 x Type A USB (for Charging)
1 x Mini USB (for Charging)
Serial Ports
2 x RJ45 Serial Ports
Cash Drawer Port
1 x RJ12 cash drawer port
Barcode Reader
Honeywell N3680 1D/2D barcode scanner
CMOS sensor with 640 x 480 pixel resolution
Supported symbologies:
– Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data bar
– 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
– 2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) code
– Postal Codes: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
Magnetic Stripe Reader (MSR)
Magtek 3 track encryptable
Default Security Level 2
Printer
Star TSP100III USB thermal 3″ (80mm) receipt printer with auto-cutter
Speed of 250mm/sec
Maximum paper roll diameter 80mm
Paper thickness: 0.053-0.085mm
Customer Display
2×16 character display*
*North America/China model only
Cash Drawer
Cash Drawer Outside Dimensions: 16.18″ x 16.54″ x 3.50″ / 411 mm x 420 mm x 89 mm
Removable till insert
Media slot for checks
3 position lock
NA/China Models:
5 bill, 6 coin built in cash drawer
Cash Drawer Inside Dimensions:
– Bill: 6.61″ x 2.80″ x 2.00″ / 168 mm x 71 mm x 51 mm
– Coin: 3.39″ x 2.28″ x 2.00″ / 86 mm x 58 mm x 51 mm
Worldwide Models:
4 bill, 8 coin built in cash drawer
Cash Drawer Inside Dimensions:
– Bill: 6.45″ x 3.54″ x 2.20″ / 164 mm x 90 mm x 56 mm, 90 mm cash slot adjustable +/-6 mm / 0.24″
– Coin: 1.57″ x 3.54″ x 1.41″ / 40 mm x 90 mm x 36 mm)
OS
SDK support for iOS 10 and later
Power
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
28W
Dimensions
16.2″ x 12.6″ x 16.2″ / 420 mm x 411 mm x 321 mm
Shipping Box Dimensions
25.5″ x 21.6″ x 19.1″ / 535 mm x 521 mm x 345 mm)
Weight (Unpackaged)
18.29 lbs / 8.3kg
Weight (Packaged)
24.00 lbs / 10.9kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%
Regulatory approvals and declarations
UL/cUL, CE, CB, CCC, SRRC, VCCI, MIC, RCM
Mounting Options
Ability to secure base to tabletop
Power Cables
Internal Power Supply
Power cable dependent on region of sale
What’s in the Box
PayPoint Plus for iPad
Power cable
1 x receipt paper roll
2 x cash drawer keys
Quick Installation Guide
RJ45 to DB9 serial cable
Optional Accessories
White Cable Kit (1 per box) – Elo P/N: E784408
Cash Drawer Kit, NA (5 bill/6 coin) – Elo P/N: E784606
Cash Drawer Kit, Worldwide (4 bill/8 coin) – Elo P/N: E202512
Spare Keys 001 (1 set of 2 keys) – Elo P/N: E201914
Spare Keys 002 (1 set of 2 keys) – Elo P/N: E202119
Spare Keys 003 (1 set of 2 keys) – Elo P/N: E202321
RJ45 to DB9 Cable Kit (10 per box) – Elo P/N: E202900
