SP-103N-B

SP-103N Cash Drawer

Manufacturer: M-S Cash Drawer
Model Number: SP-103N
Type: Heavy Duty
Specification Sheet Request a Quote

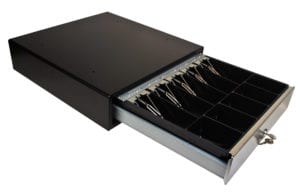

The SP-103N is a Compact cash drawer with all steel construction and a stainless front.

Features

  • Compact Cash Drawer
  • All steel construction with stainless steel front
  • Black or off-white baked enamel finish
  • Three function center key lock (manual release, electronic release, and drawer lock)
  • Standard ABS plastic 5 coin/ 5 bill removable money tray insert for US.
  • Standard ABS plastic 8 coin/4 bill removable money tray insert for Canada.
  • Stainless steel money clips
  • Compulsory switch

Part Number(s):

  • SP-103N-M-B : 15.9″(W) X 16.7″ media C/D; printer intfc; blk; 5B5C US till; requires CD9-style cable
  • SP-103N-M-B-C : 15.9″(W) X 16.7″media C/D;printer intfc;blk;4B5C Canada till;requires CD9-style cable
  • SP-103N-USB-M-B : 15.9″(W) X 16.7″ media C/D kit; USB intfc; blk; 5B5C till; USB-CABLE-V2-B cable incl
  • SP-103N-KSI-M-B-9 : 15.9″(W) X 16.7″media C/D kit; intelligent R232 intfc;blk;5B5C till;KSC-9-FEM-DIN cable&AC adapter incl.

Accessories

  • 1051-5 ; Standard 5-Bill/5-Coin US money tray insert for the HP-123N, CF-405, J-423 and SP-103N series
  • 1051-8(8/4) : Standard Canada 8-Coin/4-Bill Money tray insert; for EU-103, SP-103N, CF-405, J-423 series ; nestiing coin section
  • 1051-8 : Optional 8-Coin/5-Bill money tray insert; fits the EU-103, CF-405, J-423 and SP-103N series ; nesting coin section
  • 1051-5C : Locking Lid for the 1051-5 5B5C insert; keyed alike; for the HP-123N, CF-405 and SP-103N series
  • 1051-5CN : Randomly keyed Locking Lid for the 1051-5 (5B5C) insert for the HP-123N, CF-405, SP103N C/D
  • 1051-8C : Locking Lid for 1051-8(8/5) insert; keyed alike
  • 1051-8C(8/4) : Locking Lid for the 1051-8(8/4) insert; keyed alike; for the SP-103N, CF-405 and J-423 series C/D
  • 1051-8CN : Randomly keyed Locking Lid, INCLUDING RANDOM LOCK, for the 1051-8 insert; SP-103N,CF-405 & J-423 C/D
  • 1070-HP123: Under-counter mounting brackets for 16″ drawers; HP-123N, SP-103N, CF-405, J-423
  • 1070-H4Q: Under-counter mounting brackets for HP-123N, CF-405BX, J-423, SP-103N C/D w/space between C/D & counter-install w/rubber feet
  • 1070-HP123-D: Under-counter double brackets for the HP-123N, SP-103N, CF-405, J-423 SERIES; 2 sets (four pieces)

Detailed Specifications

Dimensions 15.9″ W X 16.7″ (L) X 4.48″ (H)
*4.11″ (H) without rubber feet
Ship Weight 23 lbs

Drawer Release Solenoid 12v or 24v
Available Wired for any receipt printer, ECR/POS system, or computer interface
