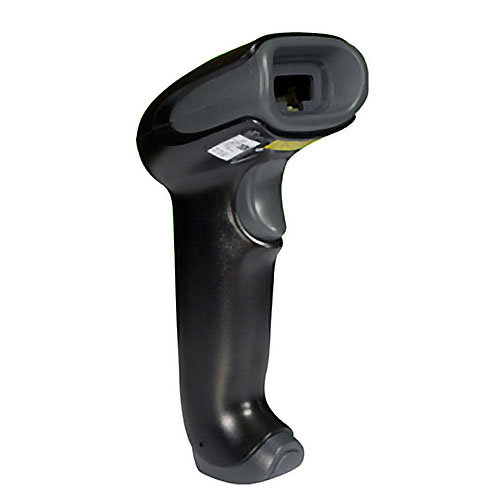

Voyager 1250g General Duty Scanner

Manufacturer: Honeywell
Model Number: Voyager 1250g
Type: Handheld
Specification Sheet Request a Quote

Extend your scanning range with the Voyager™ 1250g single-line laser barcode scanner. It aggressively reads linear barcodes up to 58.4 cm (23 in) away, making the job more comfortable and productive for your team. And the scanner is quick to switch to hands-free scanning with the included stand.

Features

  • Extended Depth of Field
  • Automatic Interface Detection
  • CodeGate® Technology
  • Superior Out-of-Box Experience
  • Ergonomic Design
  • Remote MasterMind™ Ready

Part Number(s):

  • 1250G-2USB-1-N: Voyager 1250g USB Kit: 1D,
  • black scanner (1250g-2),
  • flex neck presentation stand (STND-15F03-009-4),
  • USB Type A 3m coiled cable (CBL-500-300-C00) and documentation, assembled in Mexico

Accessories

  • CBL-500-150-S00: Cable: USB Type A HSM 5V 1.5m (5ft) straight cable
  • CBL-500-300-C00: Cable: USB, black, Type A, 3m (9.8ft), coiled, 5V host power
  • CBL-500-300-S00: Cable: USB, black, Type A, 3m (9.8ft), straight, 5V host power
  • CBL-500-500-C00: Cable: USB, black, Type A, 5m (16.4ft), coiled, 5V host power
  • HOLDER-004-U: Holder: Desktop, wall mount for Voyager 1200g and 1400g
  • STND-15F03-009-6: Stand: gray, 15cm (6in) height, medium oval weighted base, Voyager 1250g/1450g cup

Detailed Specifications

Mechanical

  • Dimensions (LxWxH): 60 mm x 168 mm x 74 mm (2.3˝ x 6.6˝ x 2.9˝)
  • Weight: 133 g (4.7 oz)

Electrical

  • Input Voltage: 5 V ± 5%
  • Operating Power: 700 mW; 140 mA (typical) @5V
  • Standby Power: 425 mW; 85 mA (typical) @ 5V
  • Host System Interfaces: Multi-interface; includes USB (HID Keyboard, Serial, IBM OE

Environmental

  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
  • Humidity: 5% to 95% relative humidity, non-condensing
  • Drop: Designed to withstand 30 drops on concrete from 1.5 m (5’)
  • Environmental Sealing: IP40
  • Light Levels: 0-75,000 Lux (direct sunlight)

Scan Performance

  • Scan Pattern: Single scan line
  • Scan Angle Horizontal: 30°
  • Print Contrast: 20% minimum reflectance difference
  • Pitch, Skew: 60°, 60°
  • Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies
  • Warranty: 5 year factory warranty
