Wallaby Pro Stands

Manufacturer: Elo Touch Solutions
Model Number: Wallaby™ Self-Service Stands
Type: Stand
Specification Sheet Request a Quote

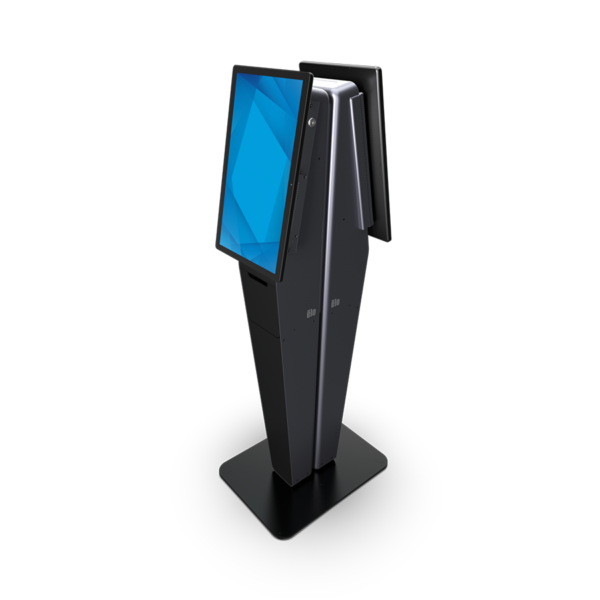

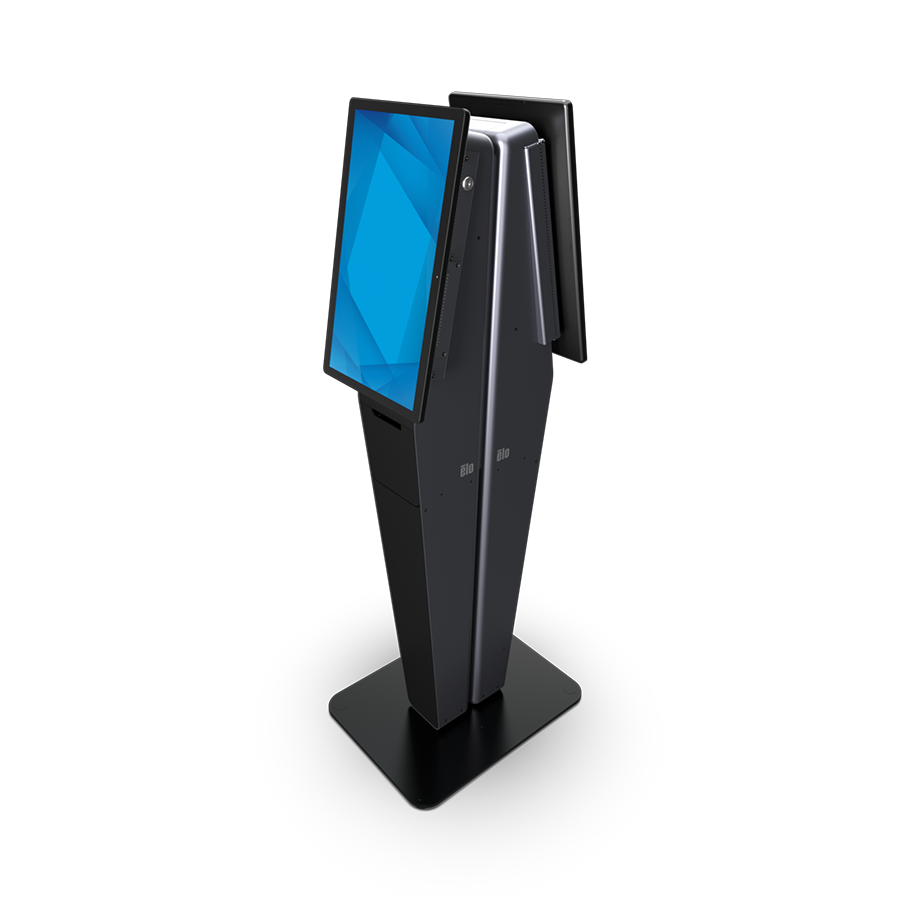

Elo’s Wallaby Pro stands are changing the industry by making it easier than ever to create interactive self service solutions. Choose from wall, counter or floor models as well as single-sided and double-sided. Purpose-built to handle high-traffic environments, the sleek, space-saving stands are designed to support endless configurability options and easy access to internal components. Choose a 22- to 27-inch Elo touchscreen, a compute device, a printer, an ADA keypad or assist button, payment devices and edge connect accessories and a backer board for additional brand messaging. The Wallaby Pro provides the flexibility businesses need to get self-service solutions up and running quickly

Features

  • Designed with endless configurability options including wall, countertop or floor models with choice of single or double-sided floor stands
  • Enables easy access to key internal components
  • Purpose-built for commercial environments
  • Supports 22-, 24- or 27-inch displays
  • Choice of Android, Windows or Linux OS
  • Configure with a variety of Elo Edge Connect Peripheral Accessories

Part Number(s):

E989314
E989512
E989705
E989127
E990079

Accessories

22″ I-Series 4 for Android: Black – E390263
22″ I-Series 4 for Android: White – E412818 (MTO)
22″ I-Series 4 for Android: Black – E391414
22″ I-Series 4 for Android: White – E413211 (MTO)
22″ I-Series 2.0 for Windows: PCAP Celeron Win10 – E692640
22″ I-Series 2.0 for Windows: PCAP Celeron No OS – E692837
22″ I-Series 2.0 for Windows: PCAP i3 Win10 – E850591
22″ I-Series 2.0 for Windows: PCAP i3 No OS – E850387
22″ I-Series 2.0 for Windows: PCAP i5 Win10 – E693022
22″ I-Series 2.0 for Windows: PCAP i5 No OS – E693211
2402L Monitor: Without Stand – E126288
2403LM Monitor: TouchPro PCAP White without stand – E381452
2403LM Monitor: TouchPro PCAP Black without stand – E381251
2702L Monitor: Without Stand – E126483
2703LM Monitor: TouchPro PCAP White without stand – E381844
2703LM Monitor: TouchPro PCAP Black without stand – E381654
Wallaby Pro Floor Stand Base: E989512
Wallaby Pro Double-Sided Floor Stand Base: E989705
Verifone MX915 and M400 – E458992*
Verifone MX925 – E352169*
Verifone P400 – E990282
Ingenico RP457C (Bluetooth) – E710930 (Edge Connect – no bracket required)
Ingenico RP457C (Audio Jack) – E586981 (Edge Connect – no bracket required)
Ingenico LANE3000 – E990468
Ingenico LANE5000 – E996512
Ingenico LANE7000 – E990654
Ingenico iSC250 – E458992*
Ingenico RP757 – E920661*
Ingenico iPP350/iPP320/iPP315 – E458797*
MagTek eDynamo – E375343 (Edge Connect – no bracket required)
Square Terminal – E458992*
Assist button kit – E284334
Signage kit for floor stand with ceiling pole – E991255
Backer board kit for floor stand or countertop stand – E990854
Backer board kit for double-sided floor stand – E989705
Ceiling pole kit for floor stand – E989893
Android Expansion Module – E809509

Detailed Specifications

E989314

Dimensions: Floor stand top (E989314): 55.98″ x 9.80″ x 7.24″ / 1422 mm x 249 mm x 184 mm
Weight: Floor stand top (E989314): 61.73 lbs / 28.00 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
When using the Elo Computer Module (ECMG4) – Operating: 0°C to 35°C OR 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Warranty: 2-Year
ADA Compliant

E989512

Dimensions: Floor stand base (E989512): 18.90″ x 17.72″ x 3.86″ / 480 mm x 450 mm x 98 mm
Weight: Floor stand base (E989512): 35.71 lbs / 16.20 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
When using the Elo Computer Module (ECMG4) – Operating: 0°C to 35°C OR 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Warranty: 2-Year
ADA Compliant

E989705

Dimensions: Double-sided base for floor stand (E989705): 22.52″ x 20.08″ x 3.86″ / 572 mm x 510 mm x 98 mm
Weight: Double-sided base for floor stand (E989705): 46.05 lbs / 20.89 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
When using the Elo Computer Module (ECMG4) – Operating: 0°C to 35°C OR 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Warranty: 2-Year
ADA Compliant

E989127

Dimensions: Countertop stand (E989127): 29.06″ x 11.81″ x 10.91″ / 738 mm x 300 mm x 277 mm
Weight: Countertop stand (E989127): 47.40 lbs / 21.50 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
When using the Elo Computer Module (ECMG4) – Operating: 0°C to 35°C OR 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Warranty: 2-Year
ADA Compliant

E990079

Weight: Wall mount kit for countertop stand (E990079): 5.95 lbs / 2.70 kg
Operating Temperature: 0°C to 40°C / 32°F to 104°F
When using the Elo Computer Module (ECMG4) – Operating: 0°C to 35°C OR 32°F to 95°F
Storage Temperature: -20°C to 60°C / -4°F to 140°F
Humidity: Operating: 20% to 80%; Storage: 10% to 90%
Warranty: 2-Year
ADA Compliant
